1. Framework
Construct the cabinet frame using 20×20, 30×30, or 40×40 T-slot aluminum profiles.
2. Top Cover Rails
U-shaped aluminum profiles serve as tracks fixed to the top of the frame; the top cover fits into these rails for smooth opening and closing.
3. Drawer Slides
Slim aluminum profiles paired with rollers or sliders allow for silent drawer operation.
4. Side Panel Mounting
T-slots and bolts secure steel or aluminum panels, enabling modular assembly.
5. Decoration and Protection
Anodized aluminum strips protect the edges of the top cover and cabinet corners against impact or abrasion.
2. Key Application Areas of Aluminum Profiles in Cabinets
| Application Area | Function | Description |
| Cabinet Frame | Load-bearing and structural support | Uses T-slot or square aluminum profiles to construct the cabinet skeleton; lightweight and demountable |
| Top Cover Rails | Guides for opening and closing the top cover | U-shaped or C-shaped aluminum profiles serve as tracks, facilitating smooth opening and closing |
| Drawer Slides | Drawer installation and movement | Small aluminum profiles paired with rollers or sliders ensure quiet, smooth sliding action |
| Door Hinge Support | Door panel mounting and pivoting | Aluminum profiles serve as mounting points or hinge bases, ensuring precision |
| Side Panel Connection | Modular assembly | Secure aluminum profiles to metal sheets or steel plates using T-slot bolts |
| Decorative Edge Strips / Anti-Collision Strips | Aesthetics and Protection | Anodized aluminum strips can be used to protect edges and corners, enhancing both appearance and wear resistance |

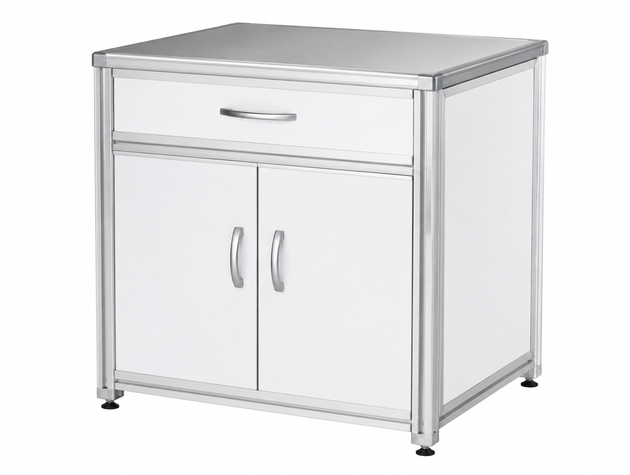

3. Design Advantages of Aluminum Profiles in Small Cabinets with Metal Sliding Tops
1. Lightweight
Aluminum profiles are 30–50% lighter than steel, making the cabinet easier to move and transport.
2. Modularity and Flexibility
T-slot profiles allow for versatile assembly and easy disassembly, facilitating future expansion or modification.
3. Corrosion Resistance
Anodized or powder-coated aluminum profiles resist rust and oxidation, making them suitable for workshop or laboratory environments.
4. Aesthetic Appeal
Finishes such as sandblasting, brushing, and anodizing create a unified, high-end look for the top cover and frame.
5. High Precision
High-precision machining ensures smooth operation of the top cover rails and drawer slides while minimizing wobbling.
6. Multifunctional Interfaces
T-slots allow for the attachment of accessories (handles, locks, dividers, brackets) without the need for welding or drilling.
