Product Description
The angles of aluminum are not all the same length on both sides, but also have L-shaped, one-side long and short angle aluminum, and angled aluminum with rounded corners, all have their own special purposes.The below is where it use:
1. Industrial aluminum profiles: frame structure, load table, closed structure, production line, civil aluminum frame.
2. Aluminum products: power amplifier molding finishing, surface treatment. Aluminum parts for automobiles, motors, elevators, and cylinders. Decoration, advertising, display, light boxes, aluminum products and profiles.
3. The stage film and television modeling, the main aluminum frame shape, curtain, chandelier, audio support frame, air box and dedicated activity workbench.
Technical Data
Conventional profile angle aluminum
| Modle |
A(mm) |
B(mm) |
T(mm) |
(kg/m) |
Modle |
A(mm) |
B(mm) |
T(mm) |
(kg/m) |
| HY-002 |
18 |
18 |
1 |
0.095 |
DS439 |
32 |
12 |
3/5 |
0.488 |
| HY-032 |
12.2 |
18.8 |
0.8 |
0.065 |
J25*30-3.0 |
30 |
25 |
3 |
0.421 |
| HY-056 |
13 |
23 |
1.2 |
0.113 |
J20*30-2.0 |
20 |
30 |
2 |
0.259 |
| HY-20*30*2.35 |
20 |
30 |
2.35 |
0.3 |
J20*20-2.0 |
20 |
20 |
2 |
0.206 |
| HY-J30*20-1.6 |
20 |
30 |
1.6 |
0.21 |
J20*20-1.5 |
20 |
20 |
1.5 |
0.156 |
| HY-JY20*20-3.0 |
20 |
20 |
3 |
0.301 |
J10*10-1.5 |
10 |
10 |
1.5 |
0.075 |
| J25*20-3.0 |
20 |
25 |
3 |
0.341 |
J50*37-5.0 |
37 |
50 |
5 |
1.111 |
| HY-25*25*2.8 |
25 |
25 |
2.8 |
0.36 |
J38*38-4.0 |
38 |
38 |
4 |
0.78 |
| HY-30*20 |
30 |
20 |
2.35 |
0.31 |
J40*30-2.2 |
40 |
30 |
2.2 |
0.404 |
| HY-30*20 |
30 |
20 |
3 |
0.383 |
J50*50-3.0 |
50 |
50 |
3 |
0.789 |
| J30*30*1.05 |
30 |
30 |
1.05 |
0.17 |
AP-14 |
50 |
50 |
6 |
1.528 |
| J30*30-3.0 |
30 |
30 |
3 |
0.463 |
HY-AP-15 |
50 |
75 |
6 |
1.942 |
| J48*48*1.0 |
48 |
48 |
1 |
0.257 |
J30*30-1.3 |
30 |
30 |
1.3 |
0.21 |
| HY-J50*50*5.0 |
50 |
50 |
5 |
1.287 |
J40*40-1.6 |
40 |
40 |
1.6 |
0.34 |
| HY-35*25 |
35 |
25 |
3 |
0.462 |
J50*50-1.6 |
50 |
50 |
1.6 |
0.43 |
| HY-DS397 |
25 |
25 |
2 |
0.26 |
J50*50-3.0 |
50 |
50 |
3 |
0.79 |
| J40*20-4.0 |
40 |
20 |
4 |
0.604 |
J70*40-1.6 |
70 |
40 |
1.6 |
0.47 |
| HY-DS133 |
25 |
20 |
2 |
0.233 |
JL40*40-2.8 |
40 |
40 |
2.8 |
0.59 |
| HY-052 |
60 |
20 |
1.11 |
0.237 |
WML25*25-1.6H |
25 |
25 |
1.6 |
0.21 |
| WML40*40*1.6I |
40 |
40 |
1.6 |
0.34 |
JL30*20 |
30 |
20 |
1 |
0.13 |
| WML50*50-1.6J |
50 |
50 |
1.6 |
0.43 |
JL30*30-3.7 |
30 |
30 |
3.7 |
0.56 |
| WML50*50-3K |
50 |
50 |
3 |
0.79 |
JL13*10L |
13 |
10 |
3 |
0.16 |
| WML70*40-1.6L |
70 |
40 |
1.6 |
0.47 |
JL30*30-1 |
30 |
30 |
1 |
0.16 |
| JL38.1*38.1-2.5 |
38.1 |
38.1 |
2.5 |
0.499 |
JL60*25-17 |
60 |
25 |
1.7 |
0.38 |
| SYJL30*3.7 |
30 |
30 |
3.7 |
0.54 |
JL150*40 |
150 |
40 |
2 |
1.02 |
| JL38*68-3 |
68 |
38 |
3 |
0.84 |
JL80*80-2 |
80 |
80 |
2 |
0.86 |
| J50*50-5.0 |
50 |
50 |
5 |
1.287 |
JL80*80-5 |
80 |
80 |
5 |
2.1 |
Application
Attributes form
Product Name |
Aluminum angle profile |
| Material |
6000 series, like 6063, 6061. |
| Temper |
T4, T5, T6
|
| Thickness |
General profiles thickness: 0.8 - 5.0 mm;
Anodized protection thickness: 8 - 25 um;
Powder coating color thickness: 40 - 120 um. |
| Length |
Customized request available |
| Shape |
square, flat, round, hollow, oval, triangle, U-profiles, L-profiles, T-profiles, H-profiles, customized available |
| Surface Treatment |
mill finish, anodized, powder coated |
| Color |
Metal silver, black, white, mirror, customized request available |
| Application |
windows and doors, curtain walls, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicles, motor housing, machine, tent, solar,etc. |

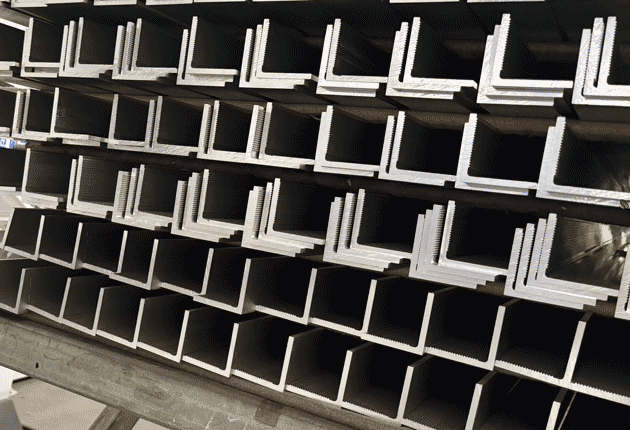

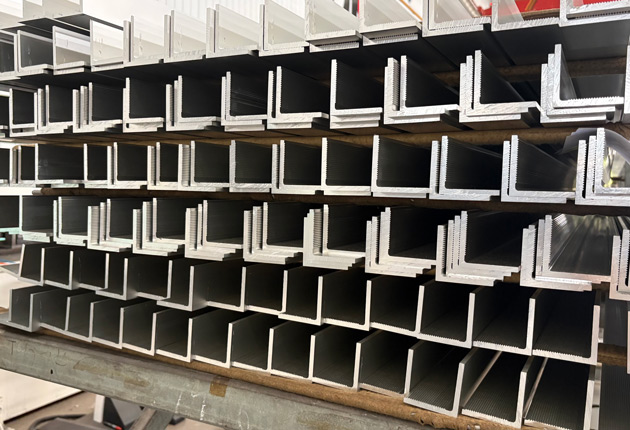

Product display and specifications
1) Provide competitive prices to customers with quality products.
2) On-time delivery and good quality control.
3) Best team service and after-sales service.
4) Free samples and molds (on a certain order basis)
5) Small orders are also acceptable.
6) All our configuration files can be customized.
Ton/Tons per month aluminum profile
Packaging & Delivery:EPE,The plastic film is wrapped around the outer wrap and wrapped in kraft paper Or can use a carton.
Lead Time：Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

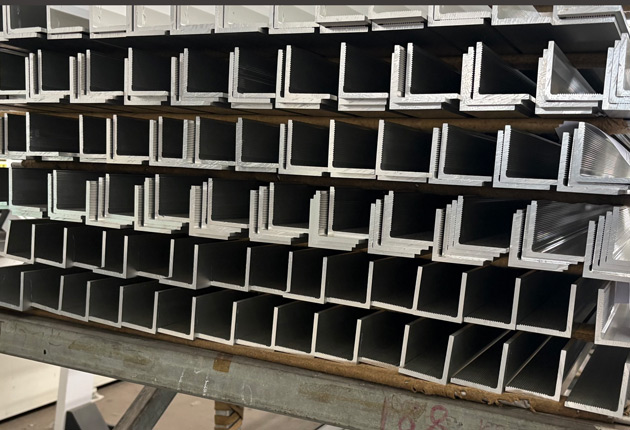

Product details
6061 T6 aluminum angle is the most commonly used aluminum for structural applications.It has above average corrosion resistance, good machinability, and is excellent for welding.6061 aluminum angle is heat-treatable, resistant to stress cracking and non-magnetic.
6063 T5aluminium angle has sharp corners and is generally used where surface finish is more important than strength.6063 Anodized Aluminum Angle offers very high corrosion resistance and high strength. Being Anodized, 6063 has a strong oxidized coat that replaces the original aluminum during the chemical process.This type of Anodized Aluminum Tube is clear coated and looks very similar to generic 6061 aluminum.
