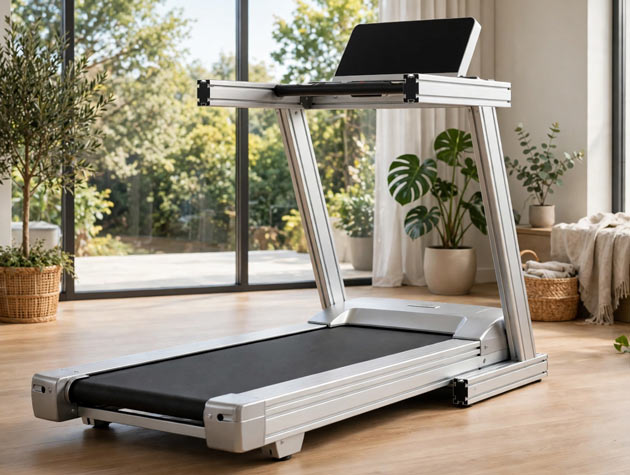

Custom aluminum profiles for treadmill frames and side rails: lighter machines, rust-proof anodized surfaces and ready-to-assemble parts

Project Requirements for Treadmill Framework

Steel-frame models of treadmills are sturdy but heavy — expensive to ship and difficult for users to move around their homes. In coastal and humid areas, painted guardrails can also chip and rust where users' shoes and sweat come into daily contact.

The goal: Redesign the aluminum frame and side rails to reduce machine weight, eliminate rust issues, and maintain the clean look home users expect from a premium product.

Huayang Treadmill Frame Solutions

1. Side step rails – wide, flat profiles running along both sides of the conveyor belt, with non-slip texture pressed directly into the surface and a hard-anodized finish to resist shoe wear and sweat corrosion
2. Main frame profiles - hollow rectangular extrusions sized for motors and tilt loads, replacing welded steel tube assemblies with single-piece profiles
3. Armrests and console posts - round and oval tubes with internal ribs for stiffness, pre-drilled for bolt assembly
4. End caps and cap supports - smaller custom parts integrated into the same mold program so each visible frame part shares one finish and color
5. All components are 6063-T5/6061 extruded, anodized or powder coated, then precision cut, drilled and machined in-house - delivered in per-model component kits ready for the customer's assembly line.

Why choose Huayang for treadmill frame?

1. Custom mold based on your drawings or samples - rail width, texture and section designed specifically for your model
2. Check straightness and size piece by piece – critical for rails that must lie flat along the entire length of the deck
3. Component sets packaged by model, ready for export, matching your production plan

Send us your drawings

Designing a treadmill or upgrading steel frame to aluminum? Send us your drawings or sample rails and we will recommend alloys, wall thicknesses and finishes for your load situation and provide a factory quote within 24 hours.
