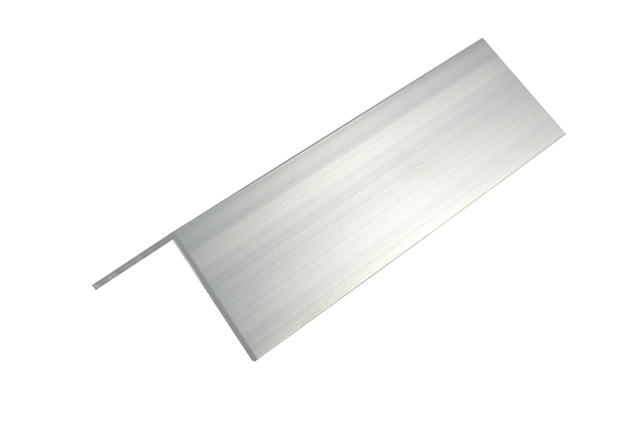

factory price 6063 polished aluminum angle bar size
Place of Origin: Henan, China
Grade: 6000 Series
Temper: T3-T8
Shape:Angle
Brand Name:Huayang
Alloy Or Not: Is Alloy
Usage:Industrial,construction, etc.
Length:100mm-7000mm

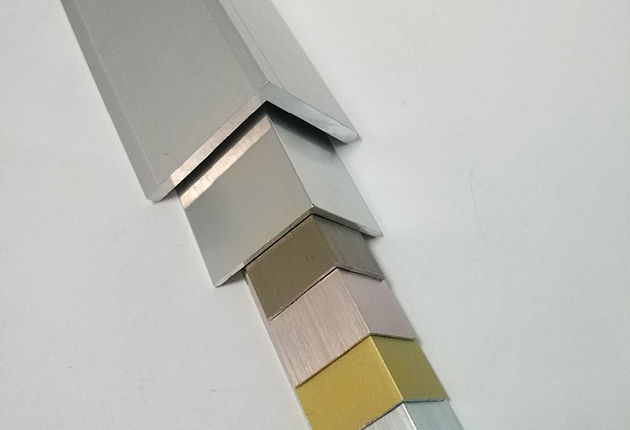

General Color: Silver, mirror, champagne, bronze, black,customized
Deep process: CNC, drilling, milling, cutting, welding, bending, assembling
Size: Drawings
Wall Thickness:0.5mm-10mm
MOQ: 1Kg
Certification:ISO9001
Payment term:T/T 30%
Introduction
Technical Data
Application
Product details
Company Information
FAQ
Product description

The angles of aluminum are not all the same length on both sides, but also have L-shaped, one-side long and short angle aluminum, and angled aluminum with rounded corners, all have their own special purposes.The below is where it use:
1. Industrial aluminum profiles: frame structure, load table, closed structure, production line, civil aluminum frame.
2. Aluminum products: power amplifier molding finishing, surface treatment. Aluminum parts for automobiles, motors, elevators, and cylinders. Decoration, advertising, display, light boxes, aluminum products and profiles.
3. The stage film and television modeling, the main aluminum frame shape, curtain, chandelier, audio support frame, air box and dedicated activity workbench.
Technical Data



Conventional profile angle aluminum

Modle A(mm) B(mm) T(mm) (kg/m)
HY-002 18 18 1 0.095
HY-032 12.2 18.8 0.8 0.065
HY-056 13 23 1.2 0.113
HY-20*30*2.35 20 30 2.35 0.3
HY-JY20*20-3.0 20 20 3 0.301
J25*20-3.0 20 25 3 0.341
HY-JY20*30-1.6 20 30 1.6 0.21
HY-25*25-2.8 25 25 2.8 0.36
HY-30*20 30 20 2.35 0.31
HY-40*40 40 40 4 0.91
J48*48*1.0 48 48 1 0.257
HY-40*60 40 60 4 1.15
HY-50*50 50 50 5 1.287
HY-35*25 35 25 3 0.462
HY-60*120 60 120 4 1.91
HY-80*80-6 80 80 6 2.75
HY-70*100 70 100 9 3.93
HY-80*140 80 140 12 6.76
HY-100*100 100 100 9.75 5.026



ODM Servie

We can Supply with ODM Service for our customers. Here is the procedure for ODM Service:

Step 1: Confirmation on CAD Drawing and mould cost.

Step 2: 10-15 Days for mould production and sample testing.

Step 3: Confirmation on physical samples.

Step 4: Mass production.

Step 5: Loading containers and shipment.
Application
The angles of aluminum are not all the same length on both sides, but also have L-shaped, one-side long and short angle aluminum, and angled aluminum with rounded corners, all have their own special purposes.The below is where it use:
Product application industry
Product application industry
Product application industry
Product application industry
Product application industry
Product application industry
Attributes form

Product Name
Aluminum angle profile
Material 6000 series, like 6063, 6061.
Temper
T4, T5, T6

Thickness General profiles thickness:  0.8 - 5.0 mm;
Anodized protection thickness:  8 - 25 um;
Powder coating color thickness:  40 - 120 um.
Length Customized request available
Shape square, flat, round, hollow, oval, triangle, U-profiles, L-profiles, T-profiles, H-profiles, customized available
Surface Treatment mill finish, anodized, powder coated
Color Metal silver, black, white, mirror, customized request available
Application windows and doors, curtain walls, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicles, motor housing, machine, tent, solar,etc.
Product display and specifications
1) Provide competitive prices to customers with quality products.
2) On-time delivery and good quality control.
3) Best team service and after-sales service.
4) Free samples and molds (on a certain order basis)
5) Small orders are also acceptable.
6) All our configuration files can be customized.

Ton/Tons per month aluminum profile
Packaging & Delivery:EPE,The plastic film is wrapped around the outer wrap and wrapped in kraft paper Or can use a carton.
Lead Time:Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Product details
6061 T6 aluminum angle is the most commonly used aluminum for structural applications.It has above average corrosion resistance, good machinability, and is excellent for welding.6061 aluminum angle is heat-treatable, resistant to stress cracking and non-magnetic.

6063 T5aluminium angle has sharp corners and is generally used where surface finish is more important than strength.6063 Anodized Aluminum Angle offers very high corrosion resistance and high strength. Being Anodized, 6063 has a strong oxidized coat that replaces the original aluminum during the chemical process.This type of Anodized Aluminum Tube is clear coated and looks very similar to generic 6061 aluminum.

Company Information


Gongyi Huayang Aluminum Industry Co.,Ltd

Gongyi Huayang Aluminum Co., Ltd. is a professional supplier of metal aluminum alloy products. The company is located in Huiguo Town, Gongyi City, Henan Province. Excellent quality and excellent service are the lives of our company.

We are committed to providing our customers with quality products and services to ensure smooth delivery to our customers. We have professional sales staff who can help you recommend high quality products. Of course, we also ensure smooth arrangements for production, customs clearance and transportation. As long as you have a request, we will try our best to meet your request. We sincerely hope to establish long-term cooperation relationship with each customer.
Packaging & Shipping
Packing Details:
1, Bundles Packing:
-- Inside: packed with plastic protective film to protect each piece
-- Outside: Wrap to be bundles by waterproof craft paper or EPE film.
2, Carton Packing:
--Inside: Each pcs pack in one plastic bag;
--Outside: Numbers of quantity put in one carton.
3, Wood Pallet Packing:
-- Inside: Bundles or cartons packing;
-- Outside: Numbers of bundles or cartons laden on one wood pallet.
4, Customized Packing Request Available.

FAQ
1: Do you provide samples?
Yes,we do.And then you need pay the cost of goods and shipping.
2: Are you trading company or manufacturer?
We have our own factory and many years of cooperation with the factory.
3: What is your lead time for production?
We can complete the orders of anodized about 25 to 30 days,The shipment can be done wirhin 40 days.
4: What is your terms of payment?
Payment<=5000USD,100% in advance.Payment>=5000USD,30%T/T in advance,balance before shipment.
5: Can I have a visit to your company before taking an order?
Sure,welcome!
6: What is your minimum order quantity?
Our minimum order quantity is 1KG.
7: What is your package?
Craft paper/Carton box/plastic Film.
8: How can you guarantee the quality?
Before mass production,we will test the mould till its quality pass. In the production,your order will be followed by QC during every step. Every product must be checked and signed before they move to the next process.
