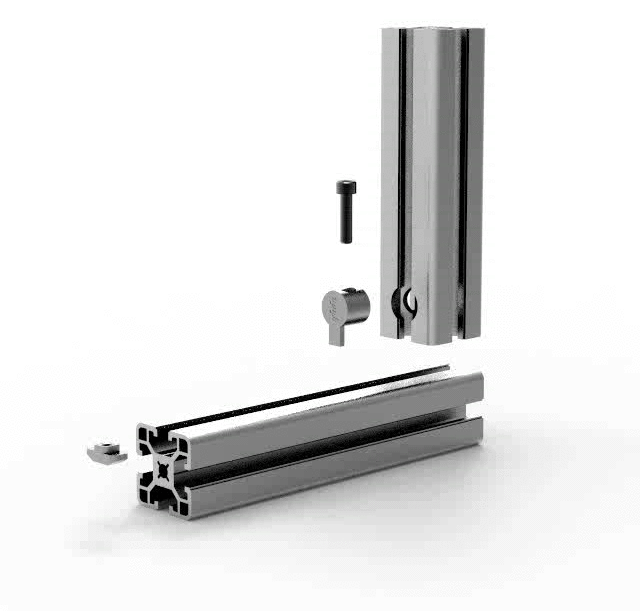

1. Built-in connectors

Used for 90° connection of two profiles, hidden connection, high connection strength.

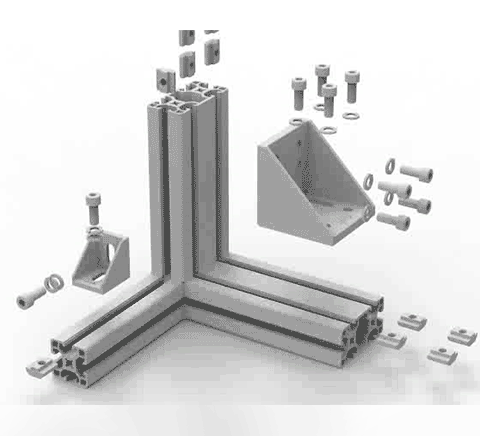

2. Angle code (90°, 45°, 135°)

It is used for the external connection of the fixed angle of the profile. It is divided into three angle connections: 90°, 45° and 135°, which can fix the sealing plate.

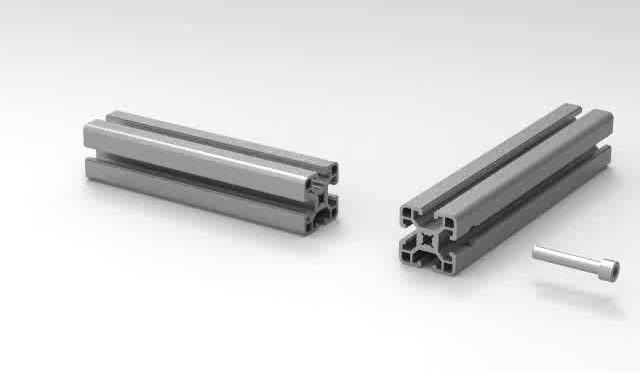

3.Screw connection

It is used for the 90° internal connection of two profiles. It is easy to install and disassemble. It is often used for simple profile cover connections.

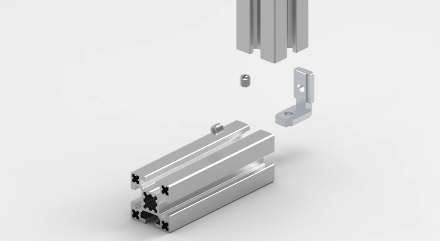

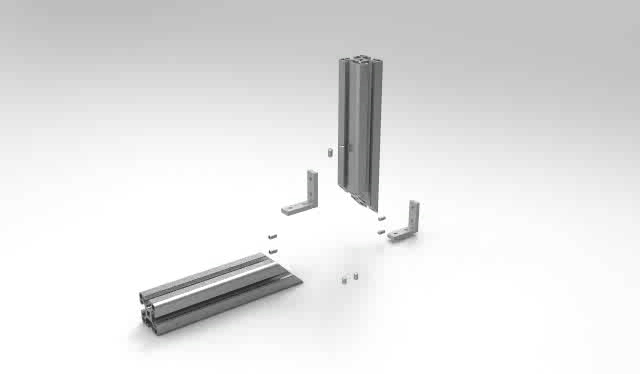

4.L-shaped angle groove connector (90°)



It is used for the 90° connection of two profiles. It is easy to install and disassemble, and the profiles do not require additional processing.

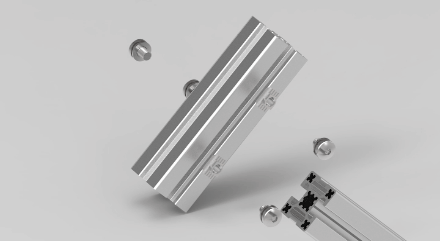

5. High-strength angle groove connector (45°)



 It is used to connect two profiles with an angle of 45° in the corner groove. It has high strength and is often used to fix door frame profiles.

6. End connector



Used for right-angle connections between two or three profiles, strong and beautiful.

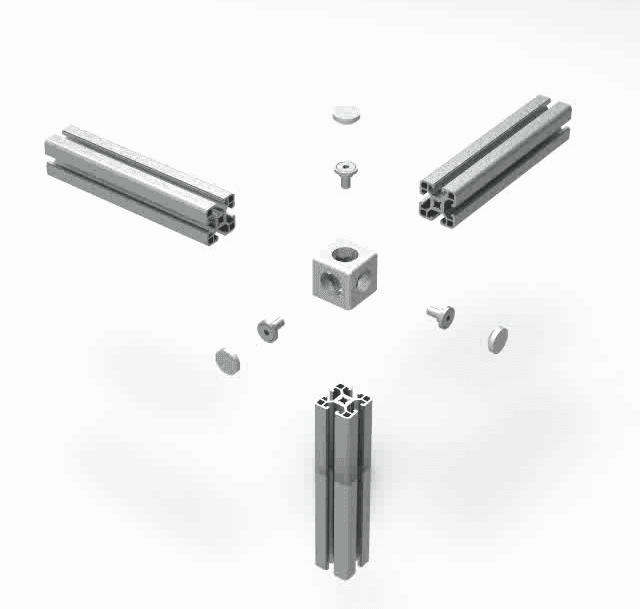

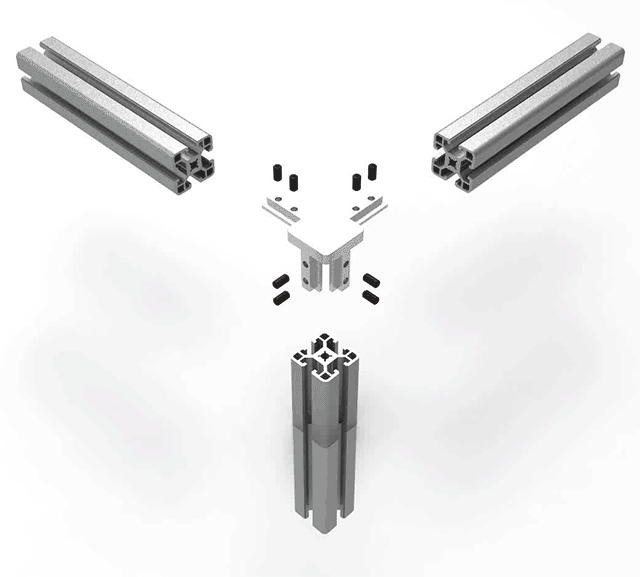

7. Three-dimensional connector (right angle)

Used for right-angle connection between three profiles, the connection is convenient and fast.

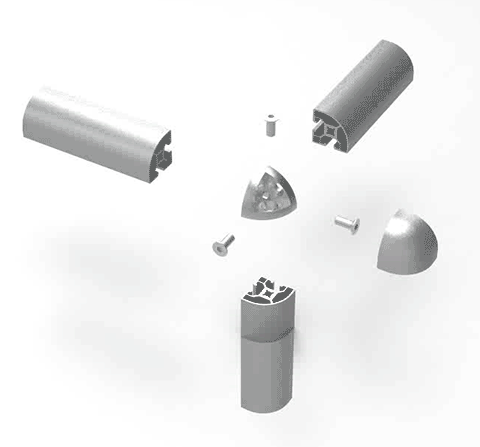

8. Three-dimensional connector (R angle)

It is used for right-angle connection between three arc-shaped profiles. The connection is convenient and fast.

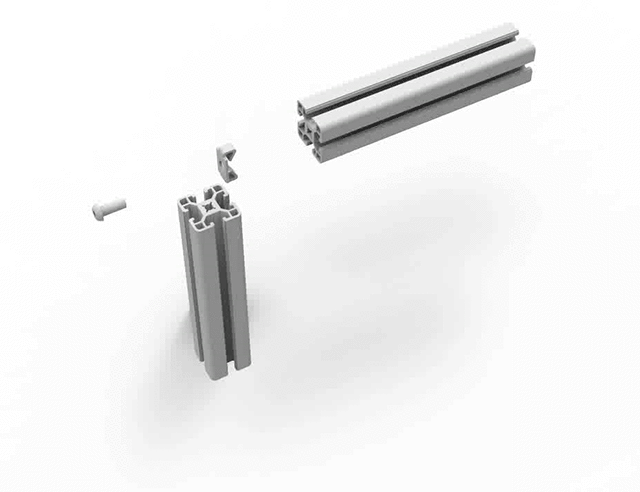

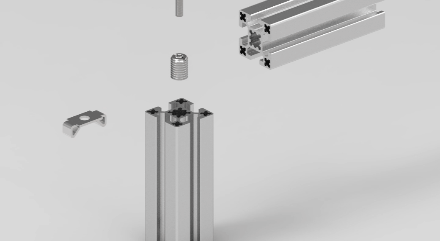

9. Elastic fasteners

Used for 90° internal connection of two profiles, easy to install and disassemble.

10. End connectors

Used for 90° internal connection of two profiles, concealed connection, high connection strength.

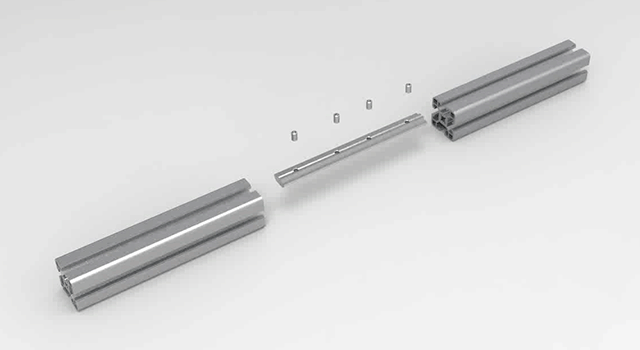

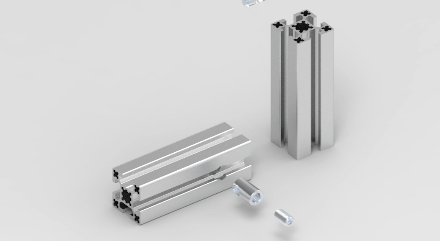

11. One-word connector

For high-strength connection of two profiles.



12.Anchor connector

Used to connect two profiles, with multiple angles to choose from, concealed connection, convenient for profile installation.

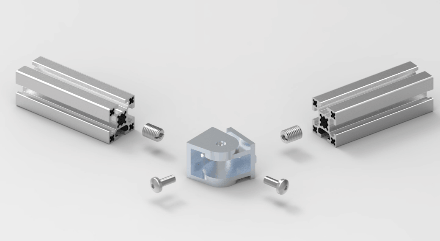

13. Living hinge

Used to connect two profiles, adjustable from 30° to 150°.

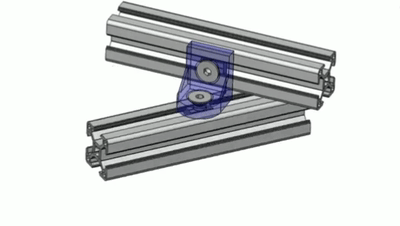

14. Steering connection plate

Used for connecting various profiles and capable of multi-angle rotation.

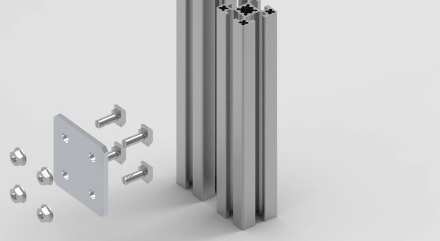

15.Connection board

It is used to connect multiple profiles, with high connection strength, no need to process the profiles, and easy installation.



16. Steering angle code

It can realize the connection of profiles at any angle.

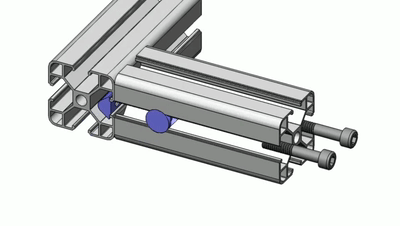

17. Bolt head assembly

Install the elastic nut into the profile, install the round column into another profile, and secure it with bolts.

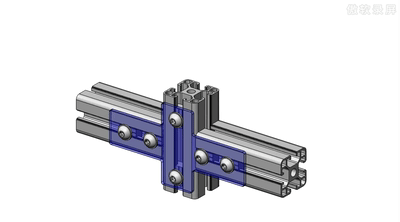

18. Cross-shaped connecting plate

Used for high-strength connections of single-channel profile "+" shaped structures.

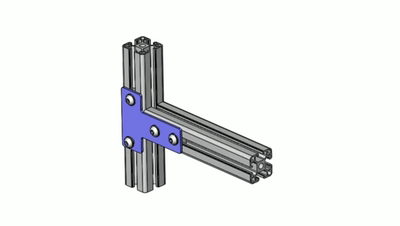

19.L type, T type-external connection plate

Used for high-strength connection of single-channel profile "L"-shaped or "T"-shaped structures.

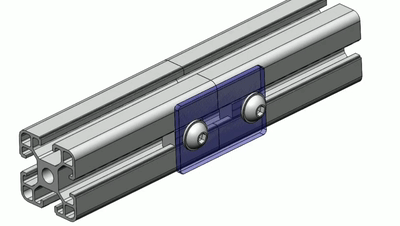

20.Y type-external connection plate

Used for high-strength connections of "-" shaped structures of single groove profiles.
